Professional ECG Machine, 24 Hours Holter Recording with AI Analysis, Works with Mac & Windows PDF Report, Portable Reliable Fast Results.
Professional ECG Machine, 24 Hours Holter Recording with AI Analysis, Works with Mac & Windows PDF Report, Portable Reliable Fast Results.
Couldn't load pickup availability
Portable Holter ECG Monitor, Professional 12 Lead ECG Monitors, 24-Hour ECG Holter Record With AI Analysis, Work With Mac & Windows PDF Report Export, Portable Heart Monitor.
Features
- Holter ECG Monitor 24-Hour: Many heart conditions occur intermittently and it can be difficult to detect abnormalities when people go to hospital for an ECG. In contrast to other ECG machines, Wellue ECG monitor can record heart activity continuously for up to 24 hours and provides the complete ECG needed to diagnose heart disease.
- 12-lead Holter ECG Machine: Wellue holter ECG device is a professional 12 lead cardiac monitor which allows simultaneous recording of 10 channels of V1, V2, V3, V4, V5, V6, LA, LL, RL and RA. 12 leads will be recorded simultaneously and a separate file will be generated.
- Powerful AI Analysis: Wellue AI-ECG is an intelligent ECG analysis system developed with artificial intelligence and big data. It analyses data and generates reports based on 300,000 patients and 50 million learned data fragments. By using cues that are invisible to the human eye, this AI-ECG analysis system is able to identify up to 17 ECG events. no extra charge for AI analysis!!!
- Portable ECG Monitor: This palm-sized 24-hour ECG monitor weighs only 2.2 ounces, so you can carry it anywhere by wearing the holster that comes with the package. Whether you're at home, out at work or sleeping, this mobile EKG device can be useful and easily record 24 hours of heart activity.

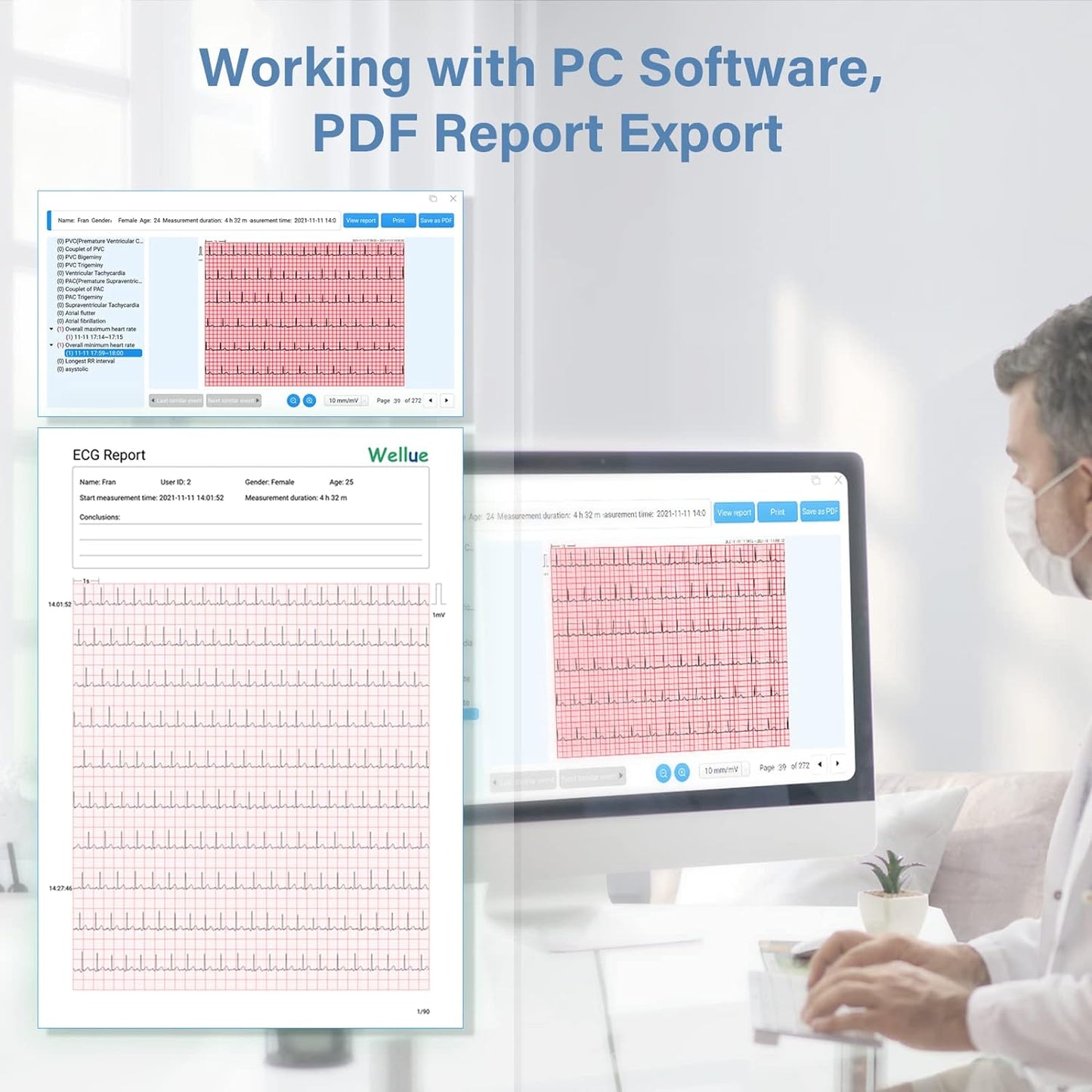

- PC Software Support: You can simply download the PC software/Mac application and connect the SD card to your computer to view the ECG/ECG waveform and get an AI-ECG analysis report. You can download ECG waveforms and detailed reports to view as PDF reports that can be stored or emailed to your doctor.
WHY IS 24-HOUR ECG MONITORING SO IMPORTANT?
Many heart conditions are episodic and it can be difficult to detect abnormalities when patients go to hospital for an ECG. Because the ECG recording time is so short, many times it is not possible to monitor the heart for abnormalities.
The Wellue 12-lead Holter ECG monitor makes it easy to record the heart's activity over a 24-hour period. Continuous recording of the ECG is possible both during the day and at night.
The 24-hour ECG monitor not only detects arrhythmias that are normally difficult to detect, but also counts their frequency and specifies their severity.
Note: Please read the operating card and instructions carefully before using the holter monitor!!!
The default language of the ECG monitor is English.
The package includes operating cards and instructions in English, German, Italian, French and Spanish.
CAPTURING EVERY ECG EVENT WITH AI ANALYSIS
Wellue AI (artificial intelligence-enabled) ECG algorithm, which is based on 300,000 patients and 50 million learning data fragments to analyze data and generate reports. By using clues invisible to the human eye, this AI-ECG Analysis System is able to identify up to 17 kinds of ECG events.

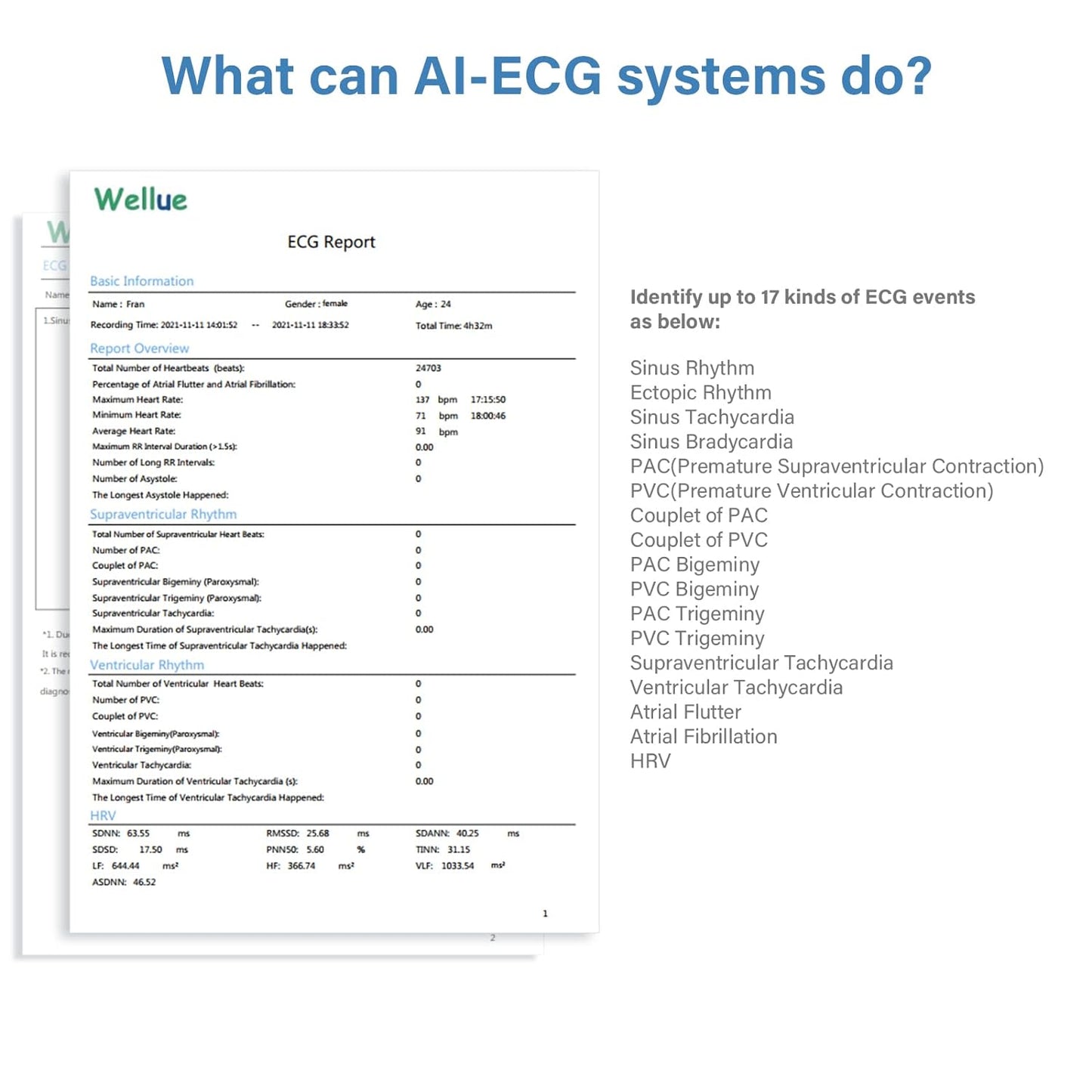

WHAT CAN YOU GET FROM AI-ANALYSIS SYSTEM
On free PC software or Mac App, you can download ECG waveform and detail reports including overview, supraventricular rhythm, ventricular rhythm, HRV, ECG report conclusion, hourly statistics table of ECG data, and ECG Fragment.
The 12 leads will be recorded simultaneously and generated to separate files. Each lead could be selected on the screen as you need. The user can quickly jump to any event via a panel on the left listing the event, it's useful for people to check their result because a typical recording has over 100,000 beats.
Attention:
1.You can download the PC software or the Mac App according to the guidelines on top of the operating card (if you don't know how to download it, please et us know)).
2.If the software pops up with a login screen, please click on "Enter Login" and complete the registration.
3.The AI-ECG should not be used to diagnose or treat disease.
HOW TO RECORD 24 HOUR ECG AND USE THE AI-ECG
|
|
|
|
|
|---|---|---|---|
Step 1: Install the battery and set the parametersUse a screwdriver to unscrew the battery clasp, place the battery correctly and screw it back in. The package comes with a screwdriver and 6 batteries. After installing the batteries, the device automatically switches on and enters the settings, setting the current time, date and ID. |
Step 2: Place the electrode pads and start ECG recordingFirst link the ecg leads to the electrode pads and attach the pads to the corresponding positions on the body as instructed by the operating card. If the skin is too dry, wet the skin with water before placing the electrodes. Place the electrode pads and take ECG recordings according to the operating card instructions. |
Step 3: End ECG recording and remove the SD cardYou can end the ECG recording at any time by pressing both the "Down button" and the "Enter button" on the monitor, or automatically after 24 hours of ECG recording. Once the ECG recording is finished, use a screwdriver to unscrew the battery clasp, remove the battery and gently press on the SD card to eject it. |
Step 4: Install the software and use AI-ECGInstall the AI-ECG Analysis System software onto your PC or Mac. Insert the SD card into the card reader and plug the card reader into the PC. Download the ECG records to your PC and click on "Analyse" to carry out the AI analysis. After the analysis is complete you can view the report and export it.After each ECG recording, please download the data to your computer in good time as the SD card is automatically formatted before each ECG recording. |

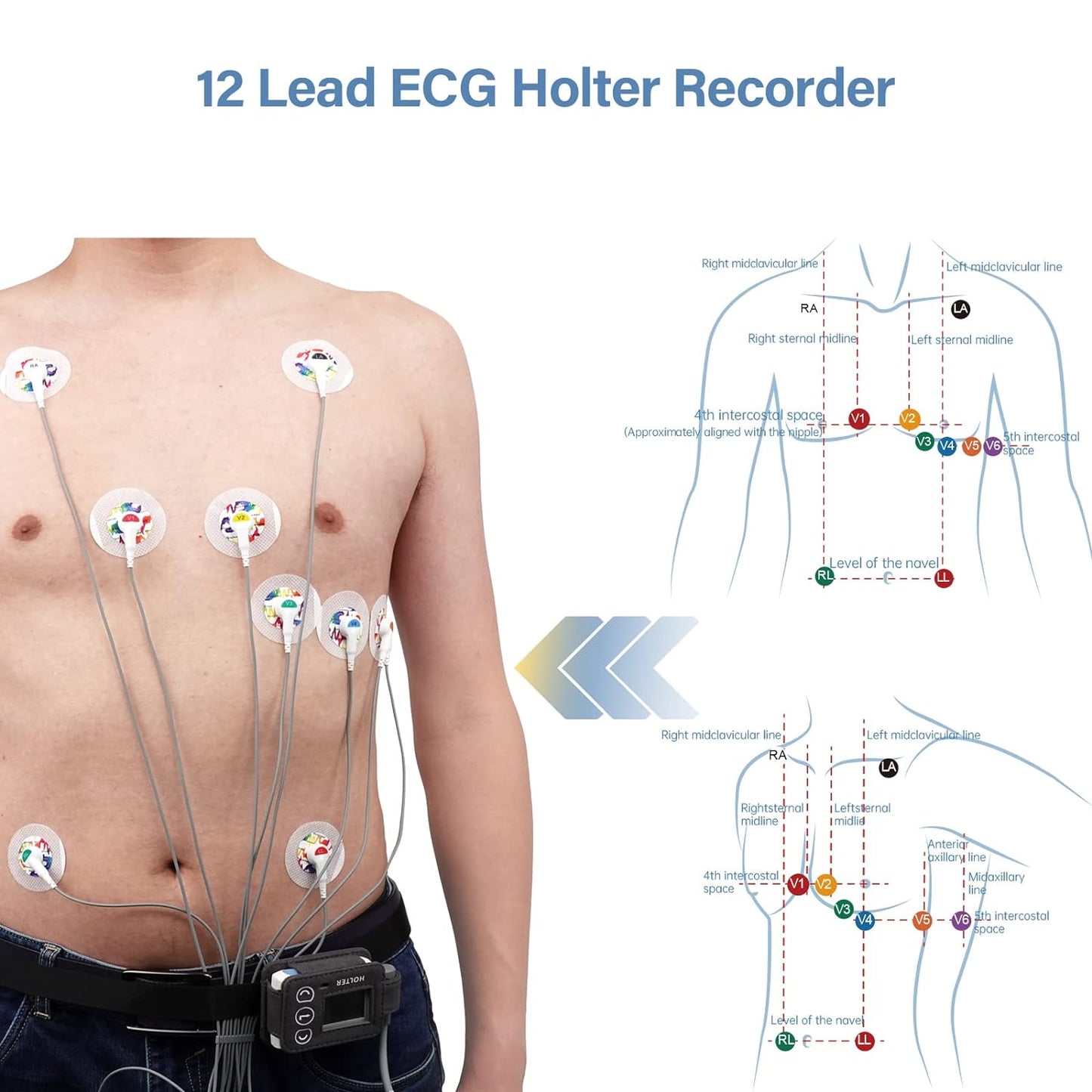

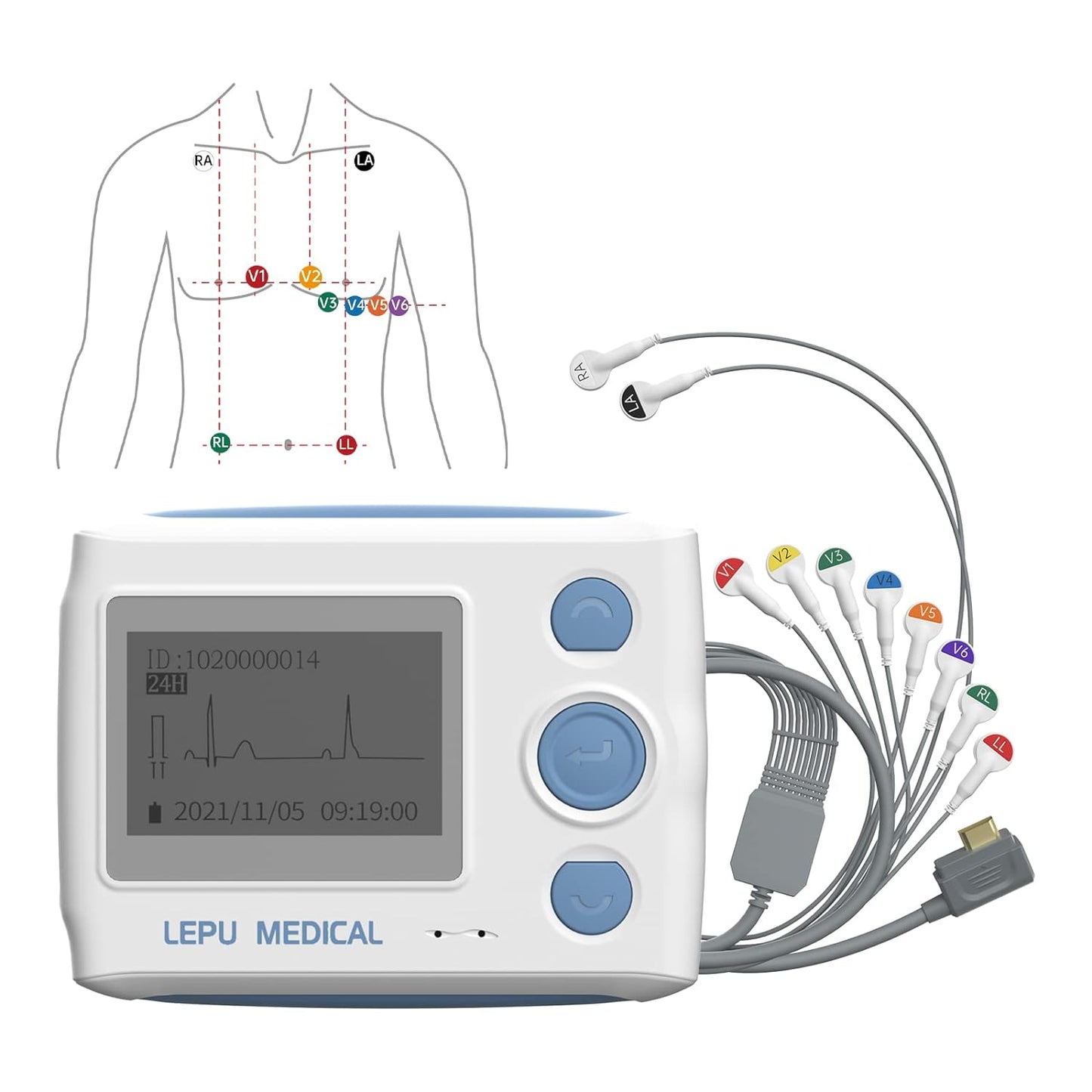

Correct Placement of Electrodes for Recording 8/12 Channel ECGs
Please follow the instructions on the operating card and manual to place the electrodes correctly and ensure that they are firmly attached to the user's skin.
The Wellue ECG monitor has 10 leads, V1, V2, V3, V4, V5, V6, LA, LL, RL and RA, which are differentiated by different colours.
By placing all 10 leads correctly at the same time, 12 channels of ECG can be recorded.
To record an 8-channel ECG, only 6 leads V1, V5, LA, LL, RL, RA need to be placed.
|
|
|
|
|---|---|---|

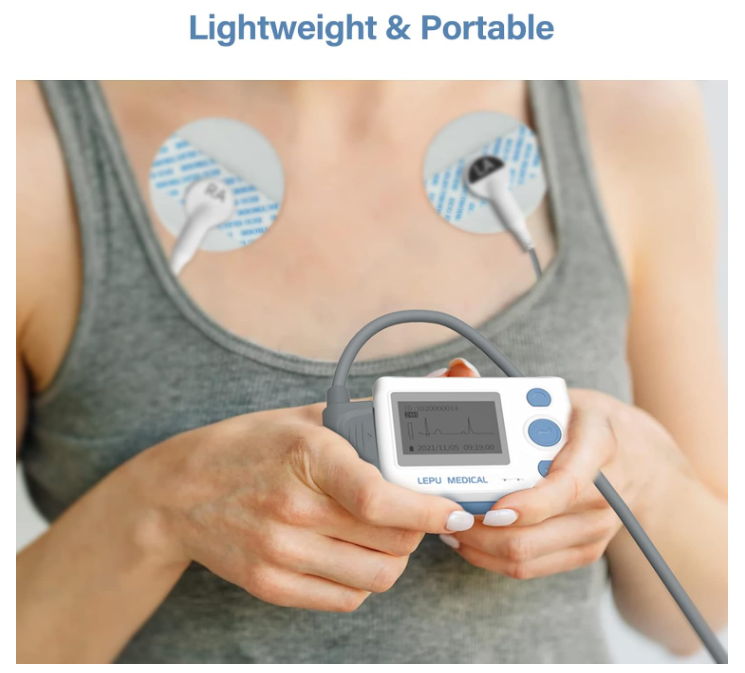

Lightweight and PortableThis palm-sized holter monitor weighs only 2.2 ounces, meaning you can carry it around with you, in your pocket or in your bag，very conveniently. |
Shoulder Strap DesignTo make continuous ECG recording easier during the day, a holster and shoulder strap have been thoughtfully included. You can carry the monitor in the holster and use the shoulder strap to hang it on your body so that you can record ECG while carrying out your normal activities. |

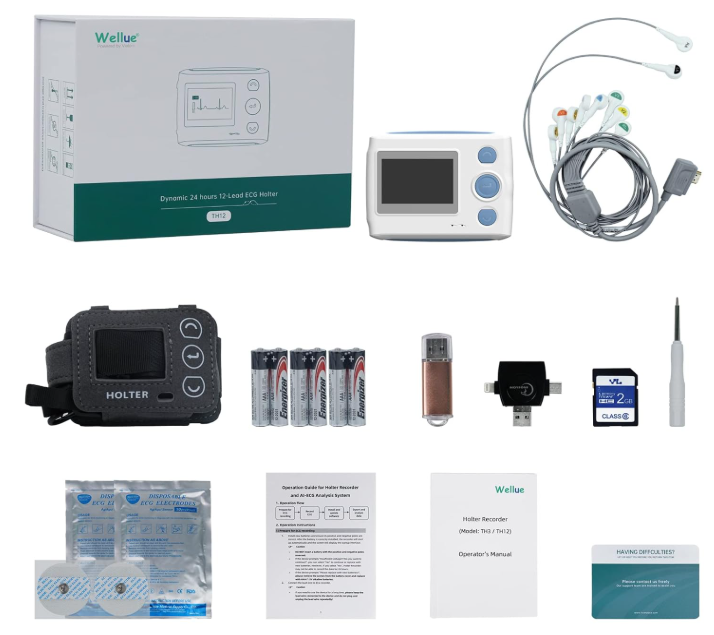

ECG Electrode PadsThe package comes with two packs of 10 electrode pads each, which you can use for ECG recording. |
